Technical Overview

Ghostferry is a Go library to move data from one MySQL instance to another while the source (and possibly the target) databases are online. In order to do this, Ghostferry must be able to copy the data from a source database to a target database while keeping track of all changes in the source database to apply them to the target database. This is implemented by SELECTing from the source database and INSERTing them into the target (copy) and applying the binlog changes from the source on the target (change synchronization).

This setup has the advantage of working with essentially any configuration of MySQL. It also provides a seamless process as it is all contained in a single package, as opposed to split between multiple applications (mysqldump/xtrabackup and MySQL replication).

It is important to note that Ghostferry is simply a part of the puzzle of a live database migration. For data integrity reasons, Ghostferry mandates that you stop writes to the dataset you are copying at a stage of execution called cutover. During the same stage of execution, you’ll also likely need to instruct any applications accessing the source database to access the target database instead.

To gain a better understanding of the overall process, let’s take a look how Ghostferry works:

Ferry.Start records the source’s current binlog coordinates (and, unless target verification is disabled, the target’s) before any rows are read, so no change made during the copy is missed.
Ferry.Run starts the background tasks: the binlog streamer pulls events from the source from the recorded coordinates and applies those applicable to the target, while the data iterator SELECTs rows from the source and INSERTs them into the target, table by table.
Ghostferry finishes copying all data from the source to the target. The binlog apply operation of (2) continues in the background.
Ferry.Run waits until cutover is allowed (AutomaticCutover), runs the selected verifier’s VerifyBeforeCutover, if any, and then notifies the application that the row copy is complete (WaitUntilRowCopyIsComplete returns) while binlog streaming continues.
The application waits until the binlog apply is close to caught up to the latest available position on the source database (WaitUntilBinlogStreamerCatchesUp), so that cutover does not start with a large backlog of binlog entries, thereby reducing the downtime required. copydb then calls the CutoverLock callback, if configured.
Writes to the copied dataset on the source must now be stopped, via either a read_only flag (for whole database copies) or some sort of application level lock (for partial database copies), with in-flight transactions finished. The application then calls FlushBinlogAndStopStreaming: Ghostferry records the source’s current binlog position, applies all events up to it and stops, and Ferry.Run returns. copydb runs steps 4 to 6 without pausing once Allow Automatic Cutover is clicked in the web UI, so with copydb the writes must be stopped before clicking it, or by the CutoverLock callback, which copydb calls and waits on before draining.
The application stops the target verifier (StopTargetVerifier), runs the final verification (VerifyDuringCutover) if a verifier is used, and only then points the application at the target database and enables writes on it. copydb calls StopTargetVerifier and then the CutoverUnlock callback (EndCutover) automatically, but does not call VerifyDuringCutover: the operator runs it with Run Verification in the web UI. The control server and any other application components keep running after Ferry.Run returns; returning does not mean that the final verification has been done.

This process has some downtime between step 6 and step 7. The window of downtime is proportional to how fast these steps can be done. In most cases this should be on the order of seconds to minutes.

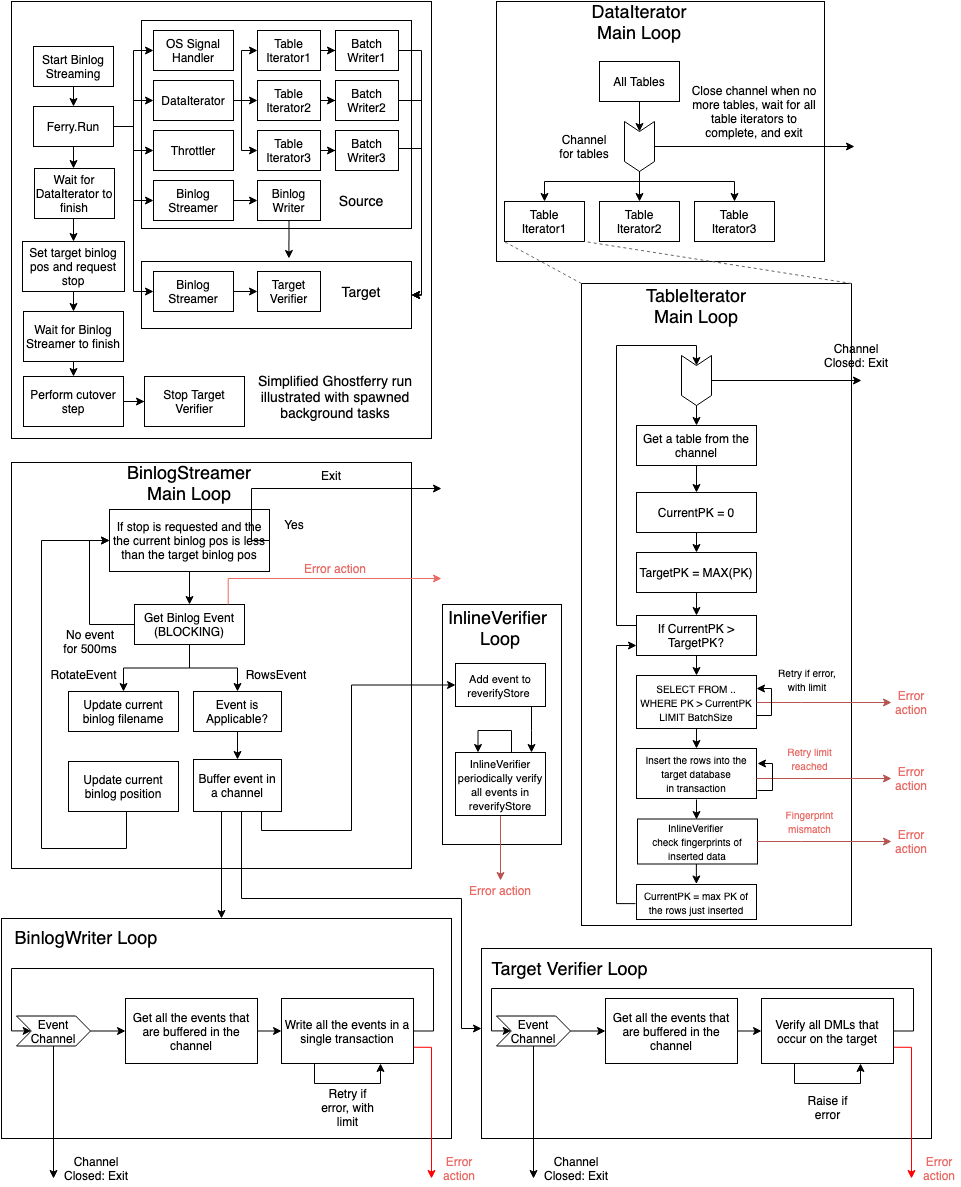

Architecture

Ghostferry has three levels of public APIs that you can use: the Ferry level, the DataIterator/BinlogStreamer level, and the Cursor level. Most of the time you only need to call methods on the Ferry. The other two levels only come in handy when you want to implement an alternative Ferry and alternative verifiers.

There are several auxiliary components to the system: the throttlers, the verifiers, the control server. These components are optional to Ghostferry runs.

The main components, all running as goroutines of one process, are:

Component	Role
`Ferry`	Initializes the components, coordinates the lifecycle and overall state, and reports fatal errors to the `ErrorHandler`.
`DataIterator` → `Cursor` → `BatchWriter`	Copies tables concurrently (one table per worker goroutine), reading each table in pagination-key order in batches and writing each batch to the target; with the Inline verifier, each batch is checked as it is written.
Source `BinlogStreamer` → `BinlogWriter`	Streams the source’s binlog from the recorded start position and applies applicable changes to the target, until the stop position recorded at cutover is reached.
`InlineVerifier`	Re-verifies the pagination keys of rows changed by streamed binlog events (only when the Inline verifier is selected).
Target `BinlogStreamer` → `TargetVerifier`	Streams the target’s binlog and fails the run on row changes to copied tables that do not carry Ghostferry’s expected SQL annotation, i.e. unexpected writers (unless `SkipTargetVerification` is set).
`ControlServer`	Web UI and HTTP endpoints exposing status and actions such as pause, cutover and verification.

You can see an example of an application built with Ghostferry in the copydb package.

Limitations

Each table is paginated by one column with unique, non-NULL values. It does not need to be an auto-incrementing primary key.
- Supported column types are integers and binary-comparable strings: BINARY/VARBINARY (for example BINARY(16) UUIDs) and CHAR/VARCHAR with a binary collation such as utf8mb4_bin. Other types and non-binary collations fail schema loading.
- Numeric pagination keys must be positive integers: the cursor starts at zero and selects values greater than the last key, so zero and negative values are not supported. Likewise, binary pagination starts from the empty value, so empty string/binary keys are not supported. Ghostferry does not validate these boundary values.
- The column is selected in this order: CascadingPaginationColumnConfig.PerTable[database][table], otherwise the primary key if it consists of a single column, otherwise CascadingPaginationColumnConfig.FallbackColumn. The fallback applies only when there is no single-column primary key (including tables with a composite primary key), not when a single-column primary key has an unsupported type or collation. A selected column that does not exist or has an unsupported type or collation fails schema loading.
- Tables with a composite primary key can be copied by configuring one separate unique column; pagination by multiple columns is not implemented. You must guarantee that the configured column is unique (preferably with a UNIQUE index): Ghostferry does not check this, and duplicate values can cause rows to be skipped at batch boundaries.
Configuration fragment (not a complete configuration):
```
  "CascadingPaginationColumnConfig": {
    "PerTable": {
      "abc": {
        "table1": "id"
      }
    },
    "FallbackColumn": "id"
  }
```
Ghostferry can only be used on a source database with FULL row-based replication.
- The source must have binary logging enabled with binlog_format=ROW and binlog_row_image=FULL; an error will be emitted during initialization otherwise. With target verification enabled (the default), the source must also have binlog_rows_query_log_events=ON, and the target needs binary logging with binlog_rows_query_log_events=ON as well.
- Without FULL RBR, the integrity of the data cannot be guaranteed.
Tables with foreign key constraints are rejected by default.
- For tables with foreign key constraints, the constraints should be removed before performing the data migration.
- SkipForeignKeyConstraintsCheck: true bypasses the check but does not make the migration correct: rows are copied and changes applied without regard to the constraints. copydb’s TablesToBeCreatedFirst only orders table creation on the target.

Algorithm Correctness

The high-level copy algorithm is described by a simplified TLA+ model in the tlaplus directory of the source tree, with a TLC model configuration in tlaplus/ghostferry.toolbox. The model is small and finite and makes the simplifying assumptions stated at the top of tlaplus/ghostferry.tla. Checking it with TLC is not a proof that the current Go implementation is correct.
